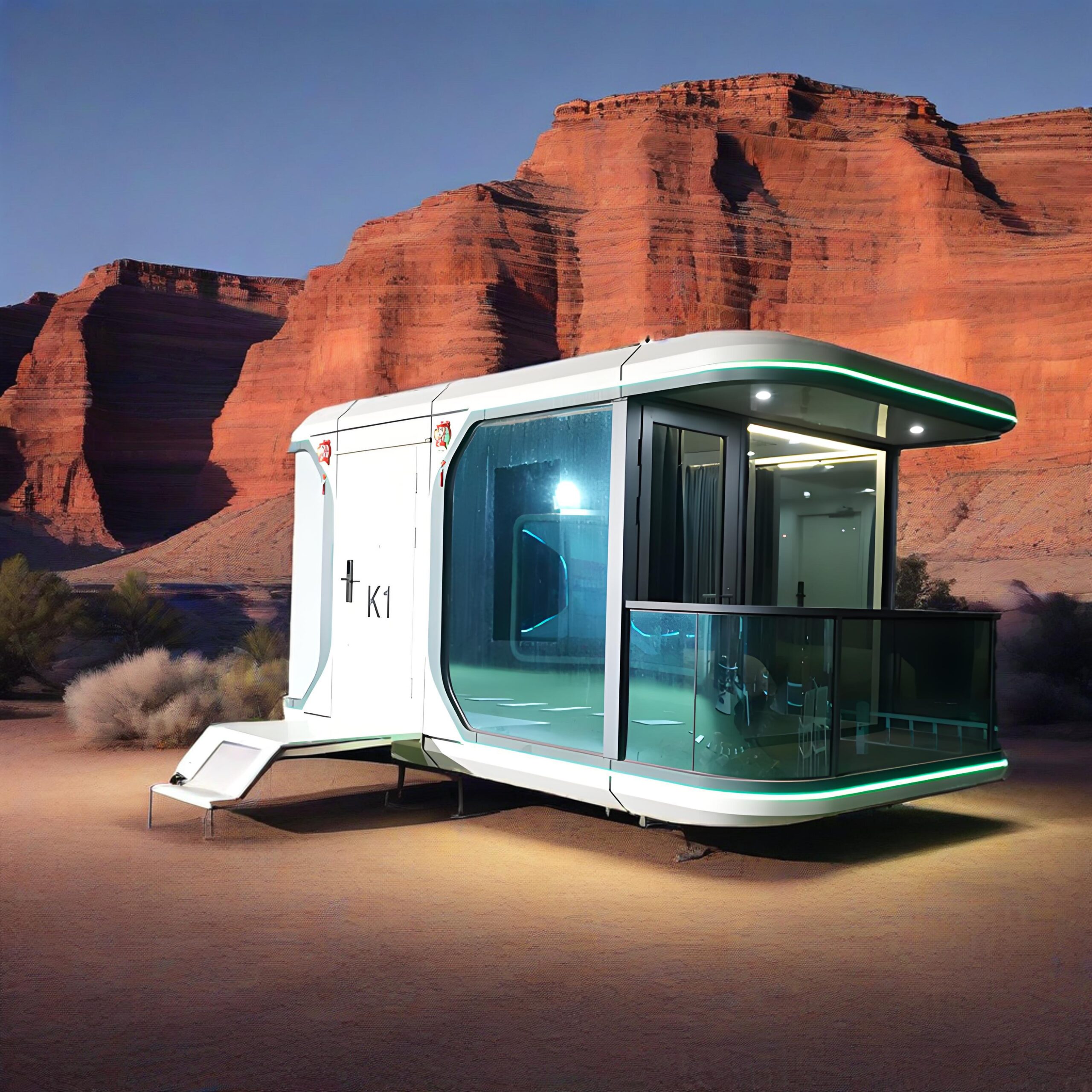

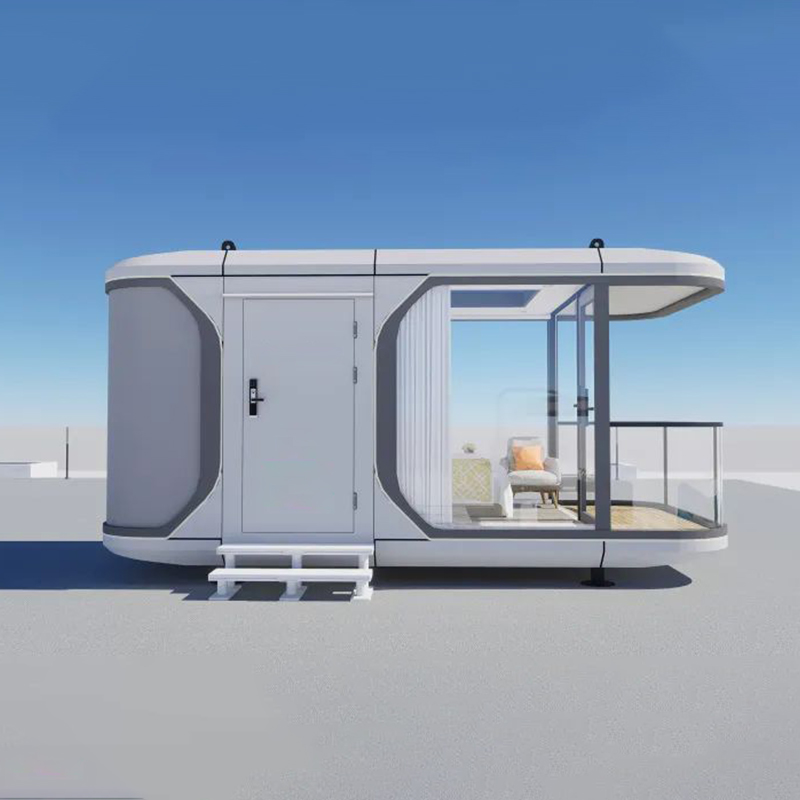

| K1 basic 5.8m Standard configuration details |
| Product model |
K1 basic |
Number of guests |
Two people |

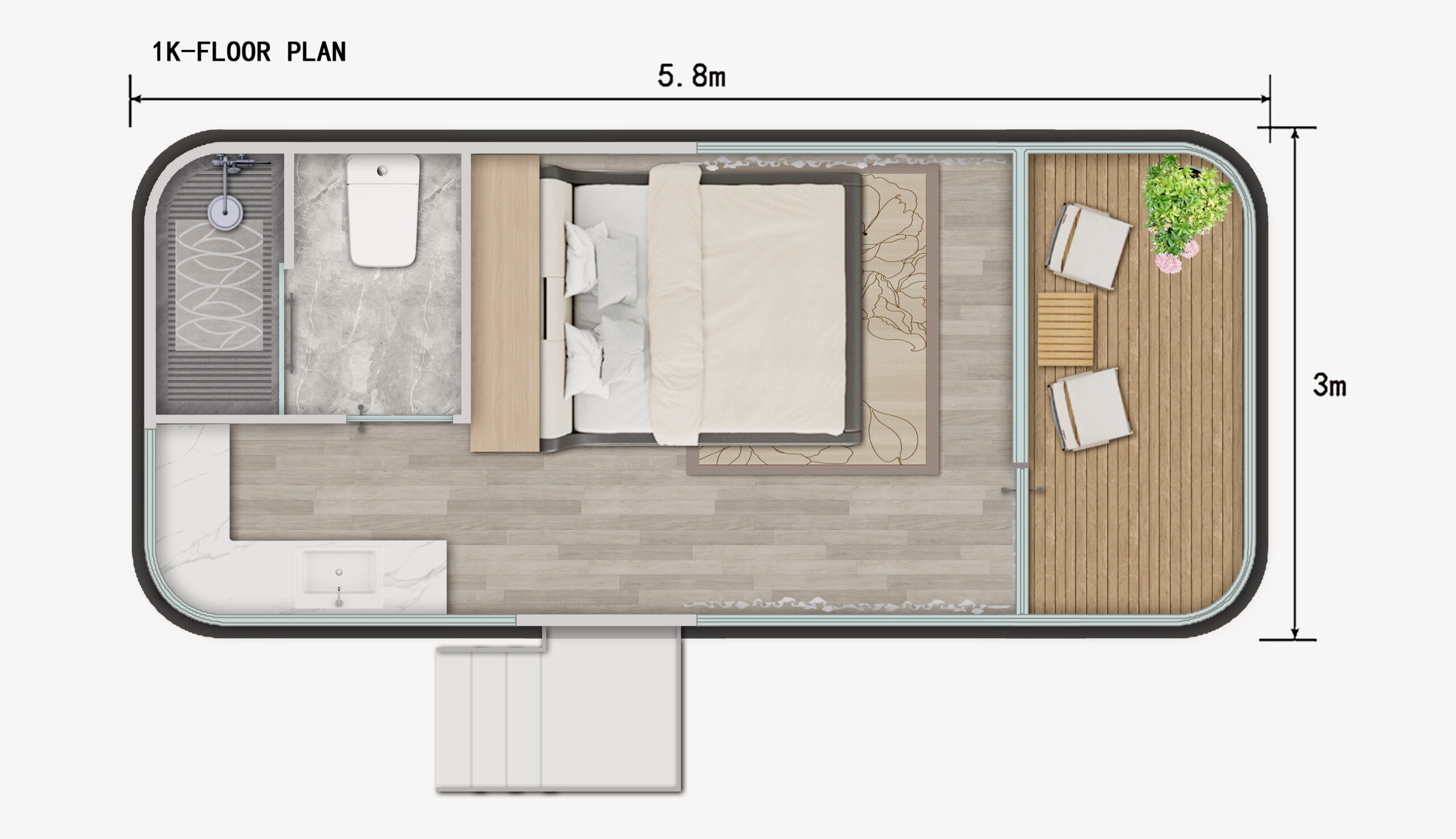

| Overall dimension |
5.8 meters long, 3 meters wide and 3.1 meters high |
Floor space |
18m² |
|
|
|
|
|
|
|
|
| Configuration class |
|
Specific configuration items |
quantity |
unit |
Configuration |
Configuration description |
| Standard configuration |
Body configuration |
Exterior wall and structural system |
Frame system |
1 |
Set |
Thickened steel frame |
Main beam 4mm thick, auxiliary beam 3.5/3.0 thick hot dip galvanized steel |
| Peripheral protection system |
1 |
Set |
Metal siding |
2.5 mm thick hot dip galvanized steel |
| External modeling light |
1 |
Set |
LEDWarm light |
Three color variable light |
| Wall system |
1 |
Set |
Polyurethane insulation layer |
6cm thick |
| Glass curtain wall system |
1 |
Set |
Panoramic wall Curtain glass (6+12+6 hollow tempered glass) |
Double vacuum LOW-E |
| Waterproof drainage system |
1 |
Set |
Flat roof gutter, independent organized drainage |
|
| Entrance door |
1 |
Pcs |
Smart access control can be fingerprint/card/password |
|
| Bathroom door |
1 |
Pcs |
Privacy glass door |
|
| interplant |
1 |
Set |
Decorative landscaping with access ports |
|
| Top of exterior wall |
1 |
Set |
|
Adopt 2.0mm galvanized sheet, fluorocarbon baking paint |
| Exterior wall protection |
1 |
Set |
|
Adopt 2.5mm galvanized sheet, fluorocarbon baking paint |
| Bottom of exterior wall |
1 |
Set |
40cm wide (including card slot) *1.6cm thick |
Metal carving board, flame retardant, waterproof, moisture-proof, heat insulation |

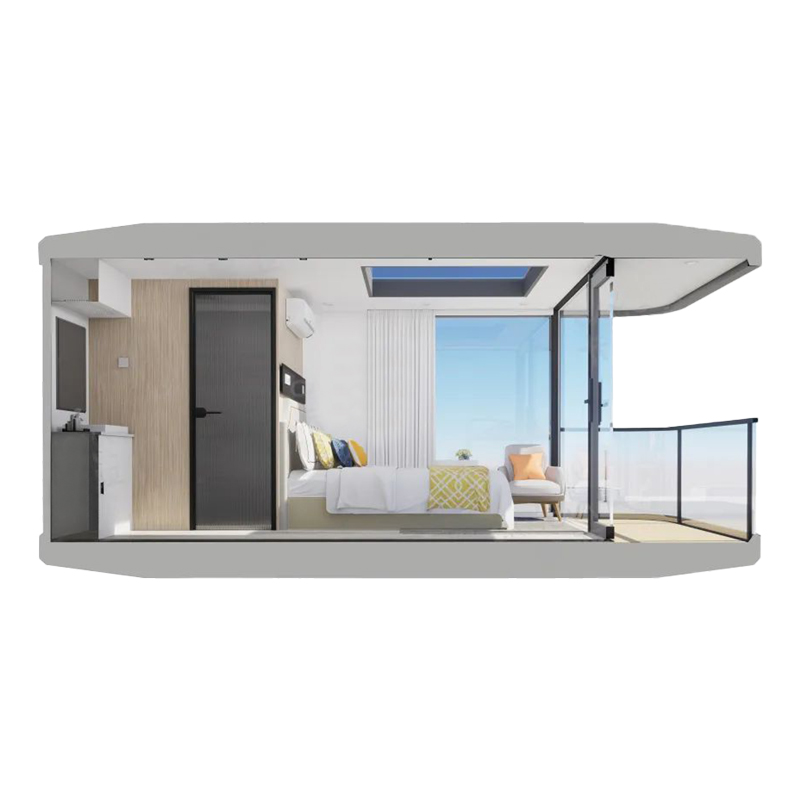

| Interior hardfitting |
ceiling |
1 |
Set |
Bamboo charcoal fiberboard |
|
| Interior wall finishes |
1 |
Set |
Bamboo charcoal fiberboard |
|
| Extra-large skylight |
1 |
Set |
Panoramic glass (6+12+6 hollow tempered glass) |
Double vacuum |
| Bathroom floor |
1 |
Set |
Non-slip floor tile |
|
| Interior floor |
1 |
Set |
Stone plastic floor |
Fireproof, waterproof, zero formaldehyde |
| Wash basin |
1 |
Pcs |
Marble countertop/ceramic wash basin |
|
| Bathroom mirror |
1 |
Pcs |
Brand bathroom mirror |
Smart beauty mirror |
| Electric box + circuit breaker |
1 |
Set |
equip |
|
| Internal configuration |
Lighting circuit system |
Room lighting and ambient lighting |
1 |
Group |
Key control |
Panel text can be changed to any language |
| Bathroom lighting |
1 |
Group |
Key control |
Panel text can be changed to any language |
| Balcony lighting |
1 |
Group |
Key control |
Panel text can be changed to any language |
|
curtain |
2 |
Set |
equip |
|
| Wash basin |
1 |
Set |
Custom basin |
|
| faucet |
1 |
Set |
Stainless steel faucet |
304 stainless steel |
|
1 |
Set |
Stainless steel |
304 stainless steel |
| Shower head |
1 |
Set |
One-piece shower head |
|
| Bath heat |
1 |
Set |
Lighting, ventilation and heating in one |
|
| toilet |
1 |
Set |
Brand toilet |
|
| Switch panel |
1 |
Set |
Siemens panel |
304 stainless steel |
| Socket panel |
1 |
Set |
Siemens socket |
304 stainless steel |
| Intelligent control of electrical apparatus |
air conditioner |
1 |
Pcs |
1.5P |
Midea, Haier, Gree brand choice (price difference) |
| water heater |
1 |
Pcs |
40L smart water heater |
Midea, Haier, Gree brand choice (price difference) |
| External configuration |
Glass curtain wall |
Glass curtain wall system |
1 |
Set |
Ford blue |
Panoramic wall Curtain glass (6+12+6 hollow LOW-E tempered glass) |
| Balcony Railing (Standard version) |
1 |
Set |
Ford blue |
Double laminated tempered glass |
| other |
kickstand |
4 |
Pcs |
Hot-dip galvanized round steel support leg with molding |
|
| Hanging ring/transport packaging |
1 |
Set |
Equipped with lifting ring |
|
| Other configuration |
Water and electricity auxiliary materials |
BVR national standard wire |
1 |
Set |
|
The entry cable is 6 coarse national standards, and the internal line is all 4 national standards |
| ppr water pipe |
1 |
Set |
|
Drain pipe diameter 100, drain pipe diameter 50 |
| Thermal insulation cotton |
1 |
Set |
Cotton mouth 2.5cm |
|
| Heat tapes |
1 |
Set |
12mm |
|
| Socket slot |
1 |
Set |
86*86 |
|
| Structural adhesive |
Outdoor adhesive |
1 |
Set |
|
|
| Indoor rubber |
1 |
Set |
|
|
| balcony |
Stone wood plastic floor |
1 |
Set |
2.5cm |
Anti-corrosion, anti-insect and non-cracking |
| Selection of equipment |
|
|
projector |
1 |
Set |
Nuts HD projector, voice control |
|
|
|
Electric curtain |
1 |
Set |
85 inch, electric control |
|
|
|
Graphene floor heating |
1 |
Set |
Full spread 3000W |
|
