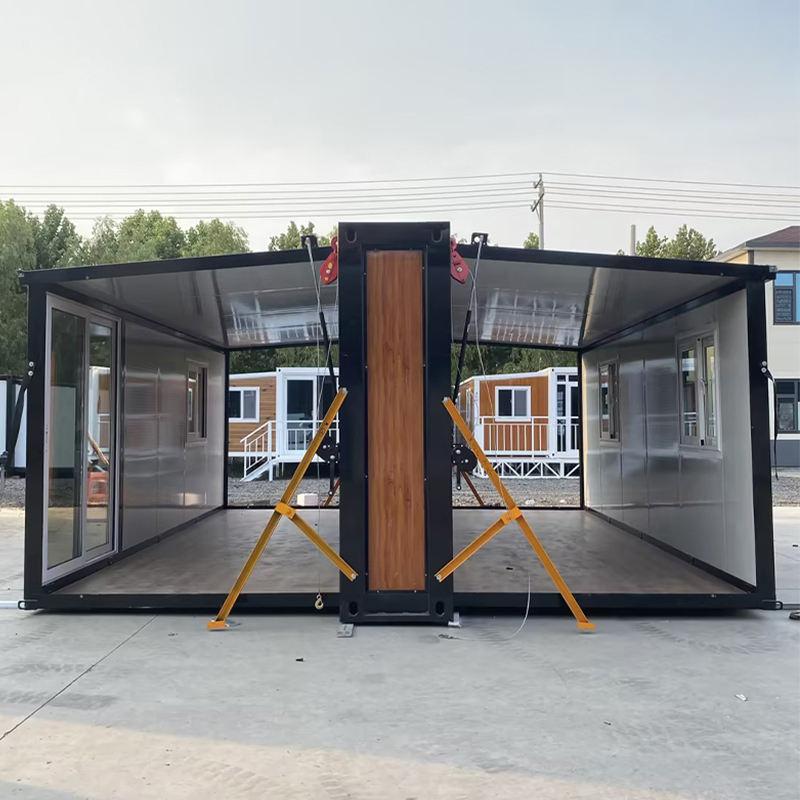

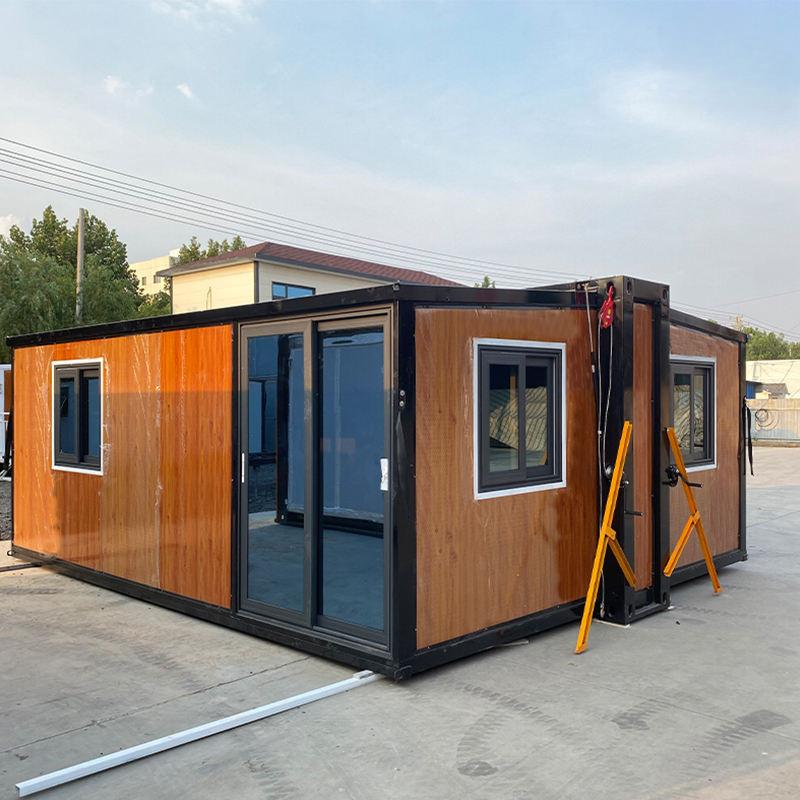

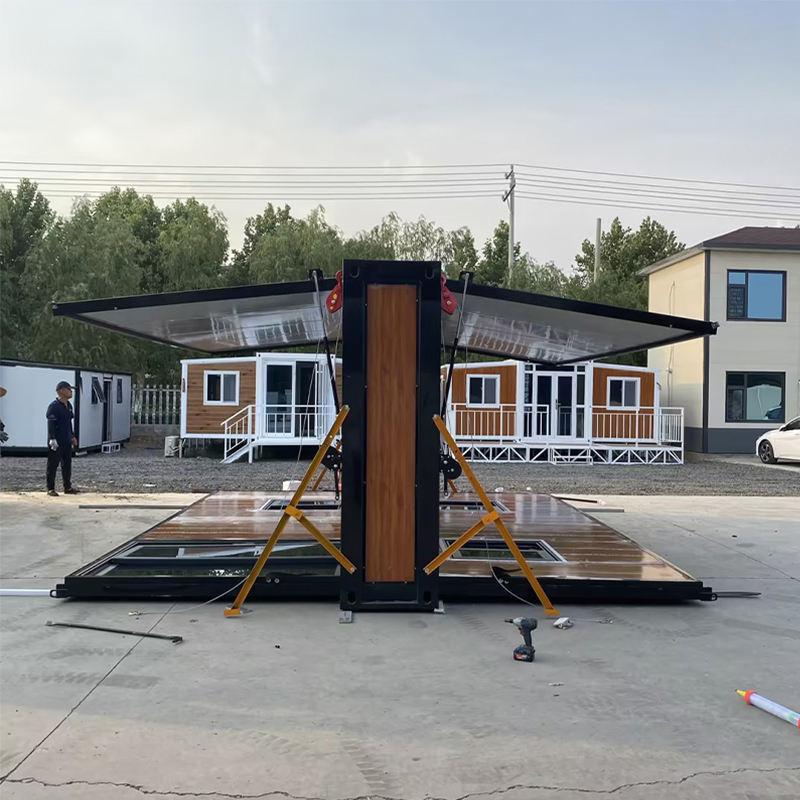

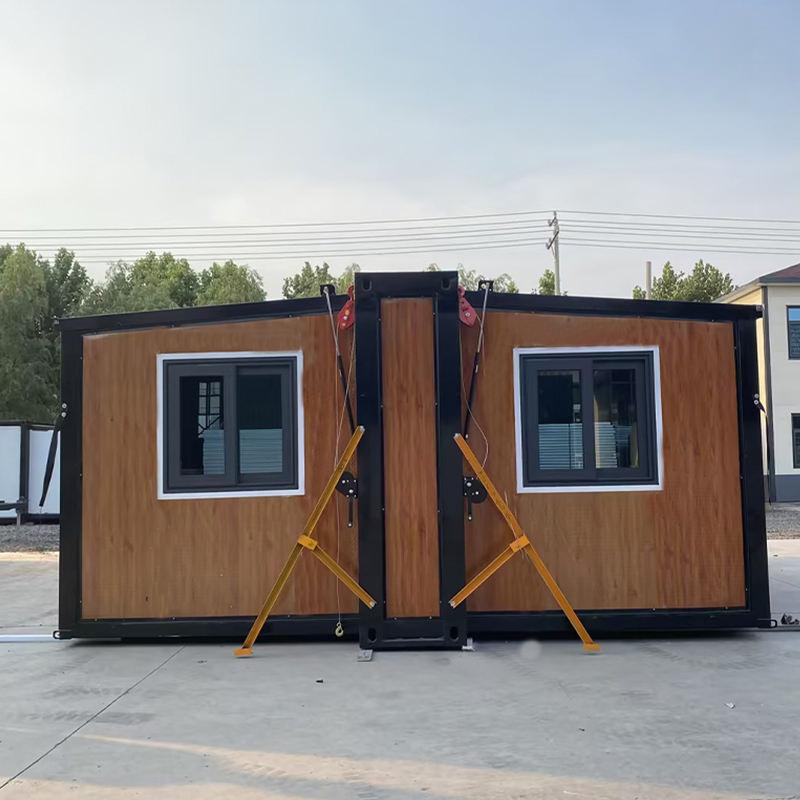

| 20 Foot 700 Type Double Wing Expansion Box Configuration Sheet | |||
| Basic information | Expansion size (mm) L * W * H | L5900*W4760*H2480 | The pictures are for reference only |
| Internal space (mm) L * W * H | L5480*W4590*H2240 | ||

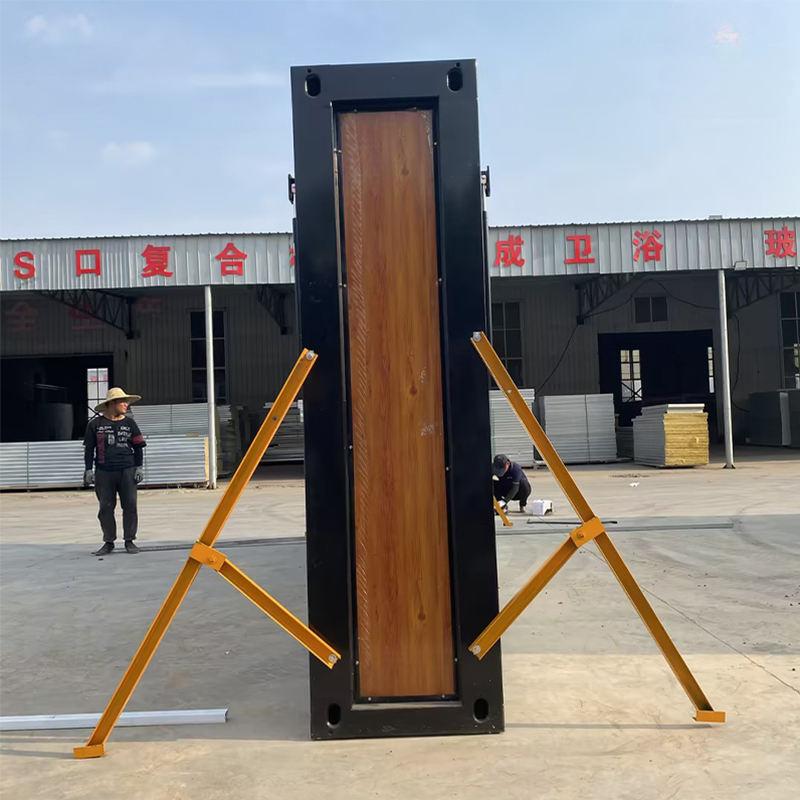

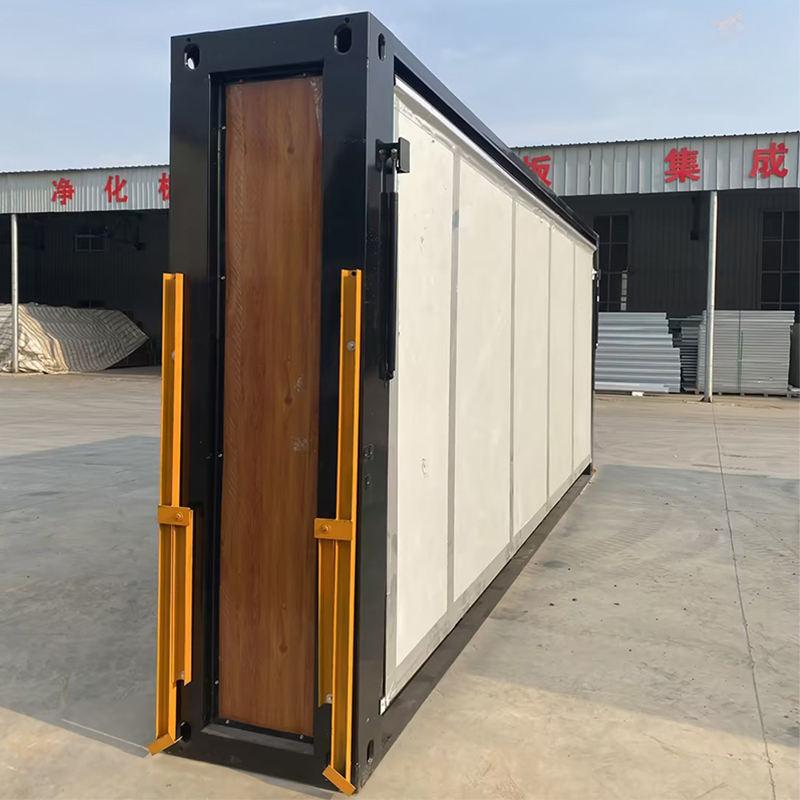

| Folding size (mm) L * W * H | L5900*W700*H2480 | ||
| Weight (KG) | 1800 | ||
| frame structure | Bottom main beam | Corner piece 5.0. Galvanized square tube 80 * 100 * 2.5mm Q235 Galvanized square tube 80 * 40 * 1.5MM Q235 Galvanized square tube 40 * 60 * 1.5MM Q235 Galvanized folding piece 130 * 100 * 3.0MM Q235 |
|
| Top main beam | Corner piece 5.0, galvanized square tube 80 * 80 * 2.5mm Q235 P-type pipe 80 * 40 * 1.5MM Q235 Galvanized square tube 20 * 40 * 1.5mm Q235 Galvanized square tube 60 * 40 * 1.5mm Q235 |
||
| Column | Galvanized folding piece 210 * 150 *, 2.5MM Q235 | ||
| Sub-frame | p80*40*1.5MM Q235 Galvanized folding piece 40 * 90 * 2.0MM Q235 Galvanized square tube 60 * 40 * 1.5mm Q235 |
||
| hinge | Galvanized thickened hinge Q235 | ||
| floor | Middle floor | 18mm cement floor | |
| Both sides of the floor | 18mm wooden plywood | ||
| Plastic flooring | 2.0mm plastic flooring | ||
| Insulated wall | external wall | 75mm sandwich panel, double-sided 0.25 color roll (sandwich material includes rock wool 80kg/m ³, EPS, polyurethane optional) The standard sandwich material is 10kg/m ³ EPS |
|
| partition | 50mm sandwich sandwich panel, double-sided 0.25 color steel plate substrate. The insulation material is the same as above ↑ | ||
| Main roof and side roof | 75mm sandwich panel, double-sided 0.25 color steel plate substrate. The insulation material is the same as above ↑ | ||
| Electrical system | parameter | 1. Standard national standard wires; 6 square meters of incoming lines, 4 square meters of air conditioning sockets, 2.5 square meters of regular sockets, and 1.5 square meters of lighting. (Circuit that meets certification requirements can be customized according to the country) 2. Circuit breaker system, 1 2P63A leakage protector, 2 2P32 leakage protectors, and 1 2P16A leakage protector. 3. Lighting; 6 LEDs. 4. Socket; Standard three hole socket (socket standard can be configured according to customer requirements) |
|
| Door and window system | Entrance doors | Standard steel/single door (customizable KFC door, KFC sliding entry door) | |
| Steel door | 50 socket steel door | ||
| window | Standard plastic steel double glass sliding windows (can be customized with high-end bridge cut aluminum windows and aluminum alloy sliding windows) 930 * 930 * 4 pieces; | ||
| House type | |||
| One Hall | a one-bedroom | ||
| price | |||
| The parameters in the layout drawings are for reference only, and the text in the parameter table shall prevail. | |||
