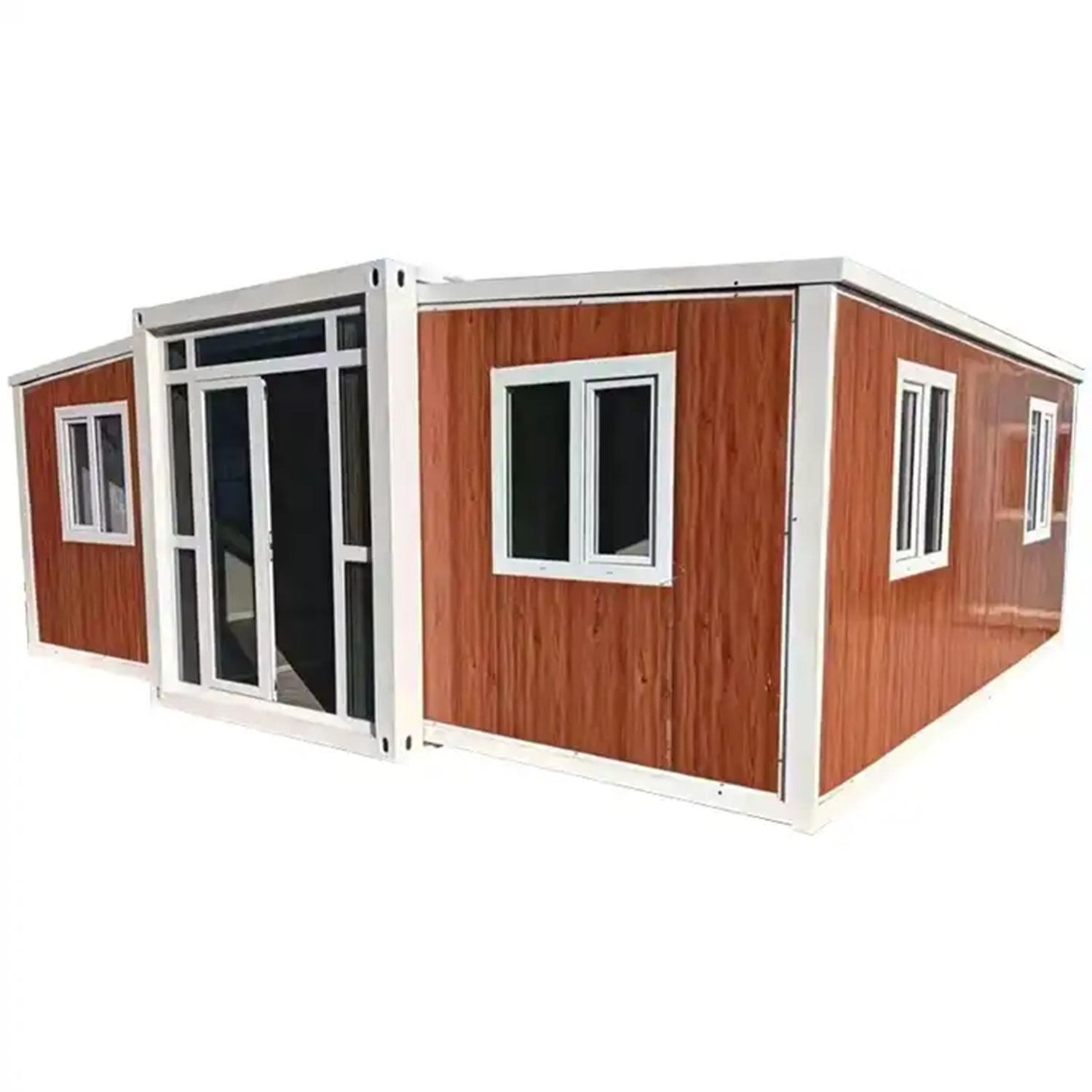

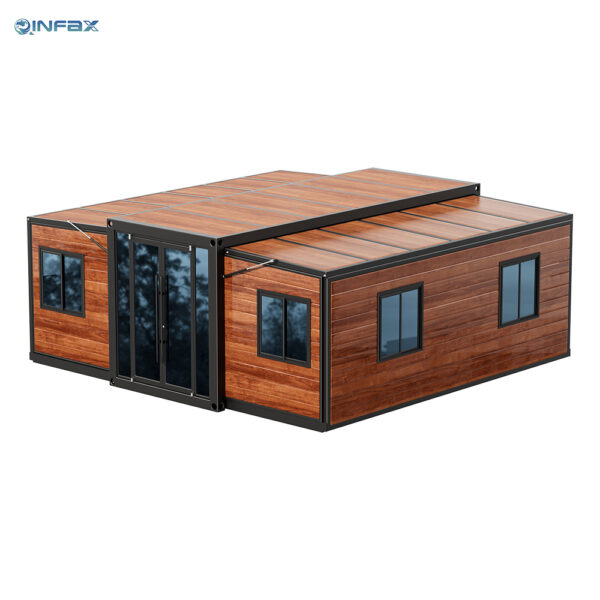

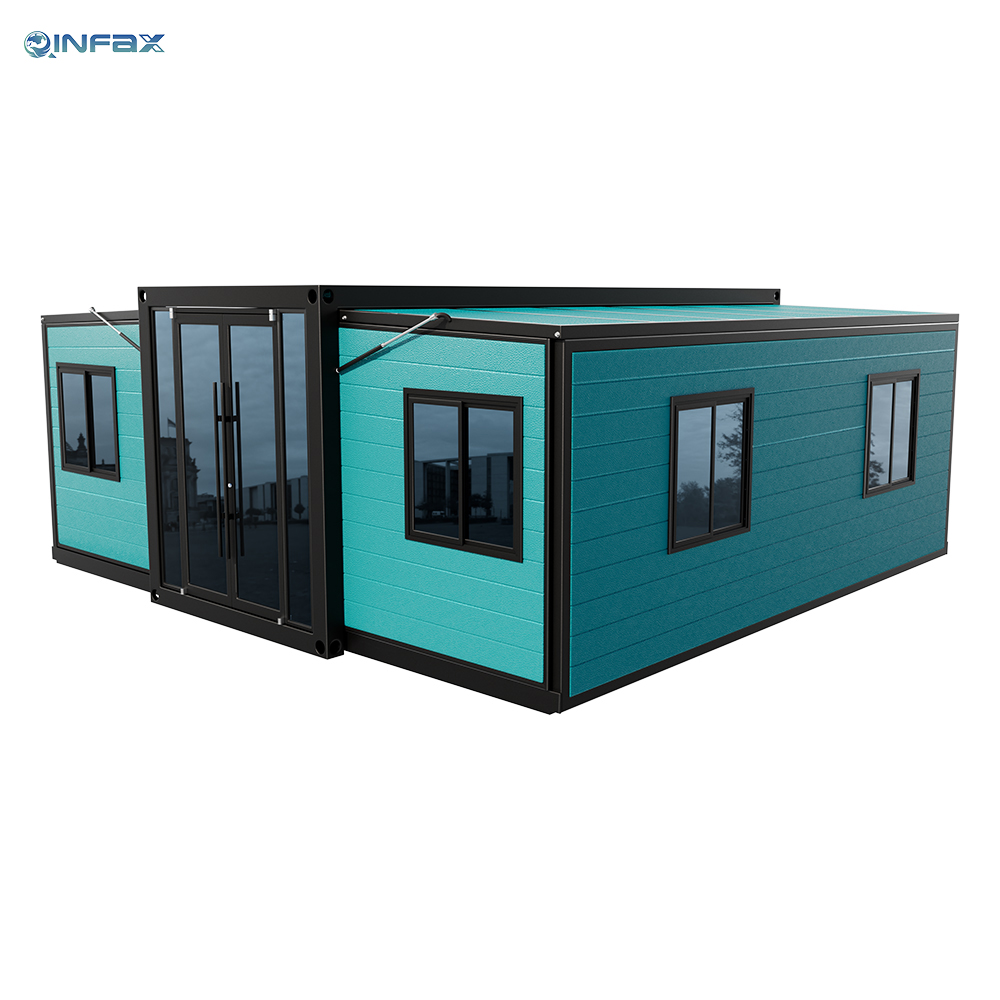

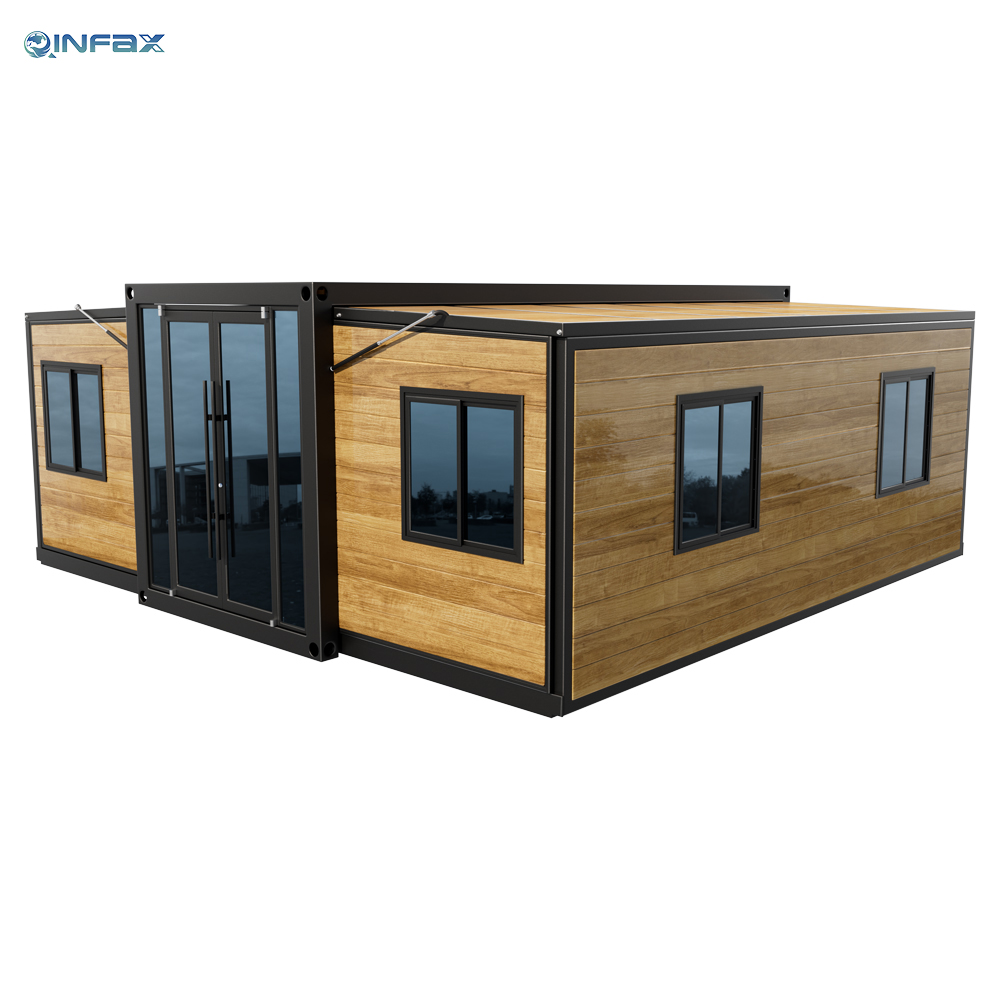

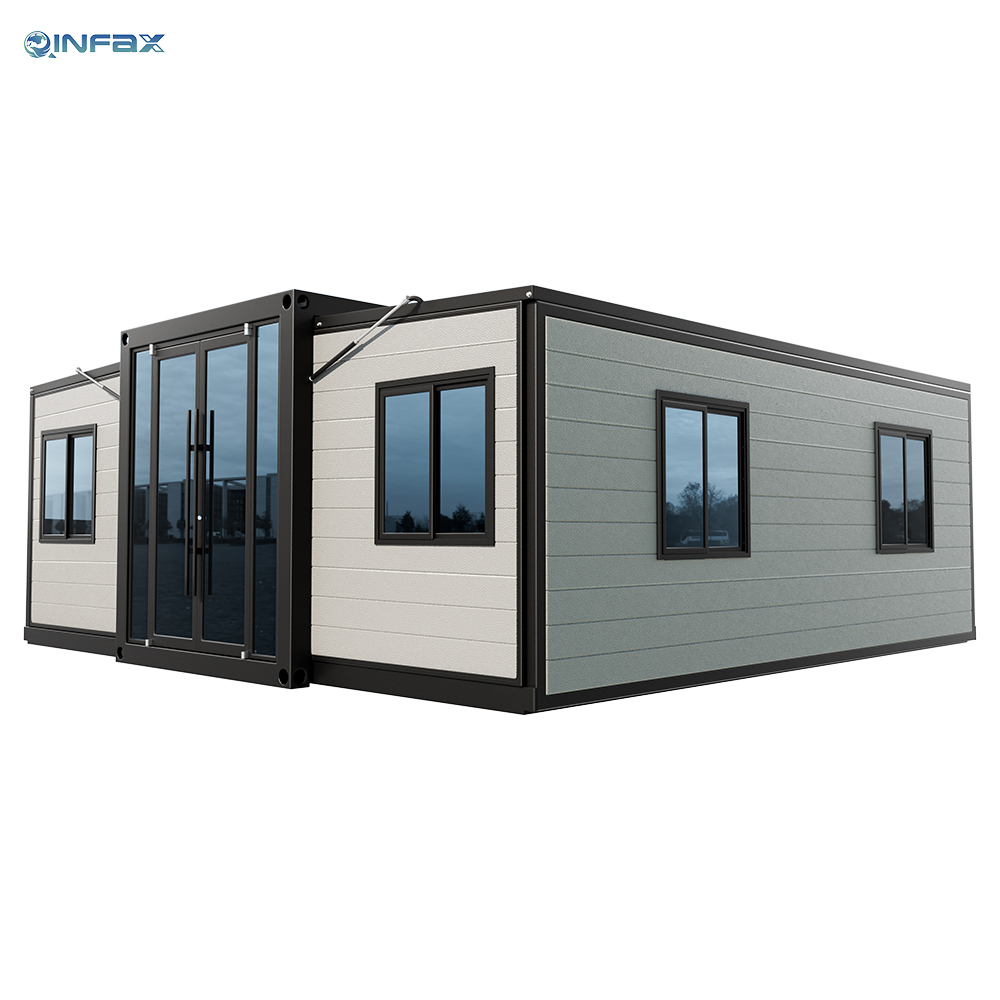

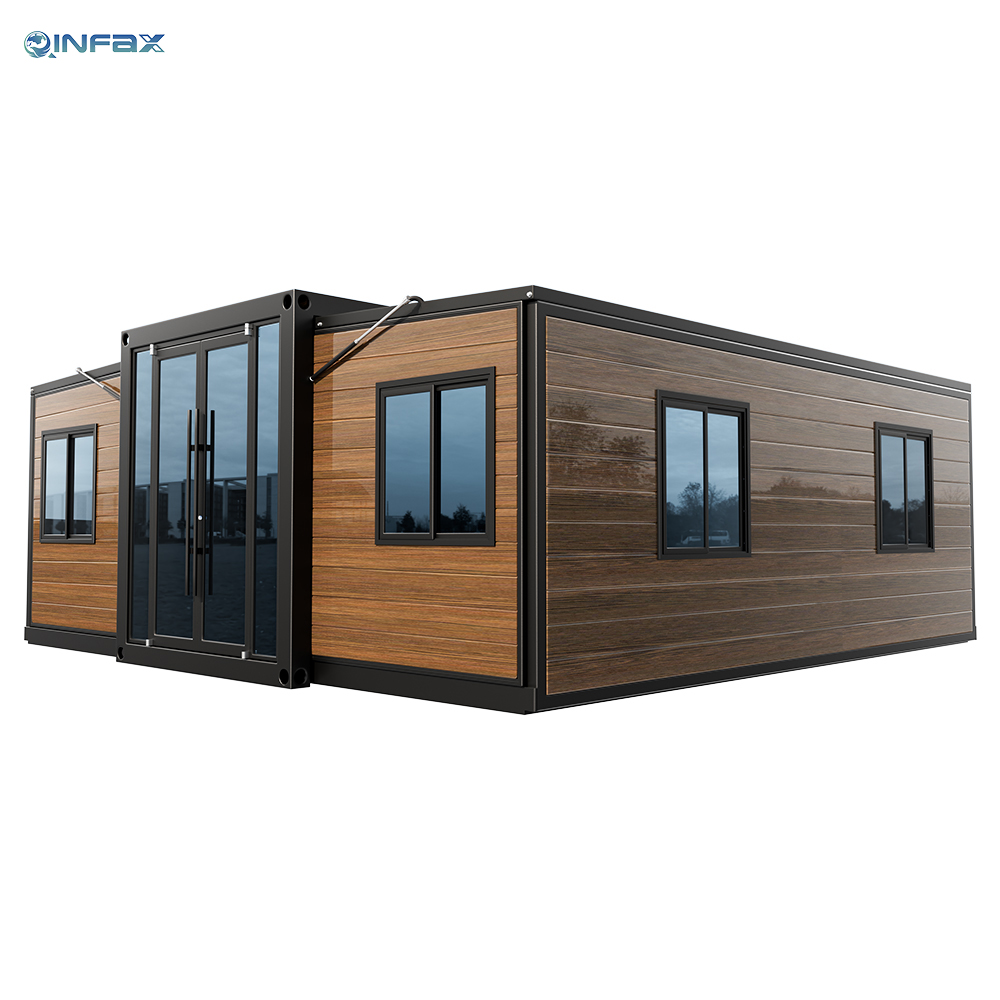

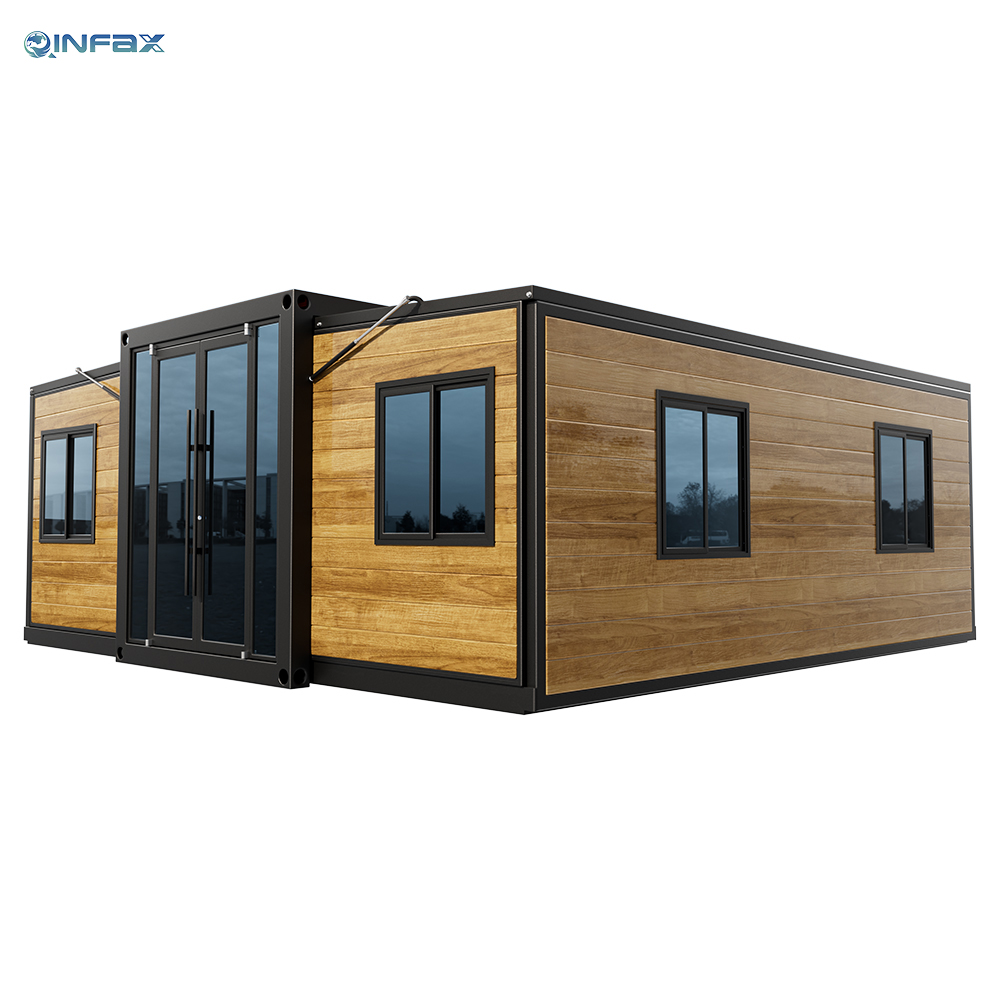

| 20 Foot Double Wing Expansion Box Configuration Sheet | |||
| Basic information | Expansion size (mm) L * W * H | L5900*W6260*H2480 | The pictures are for reference only |
| Internal space (mm) L * W * H | L5480*W6110*H2240 | ||
| Folding size (mm) L * W * H | L5900*W2200*H2480 | ||
| Weight (KG) | 3000 | ||
| frame structure | Bottom main beam | Corner piece 5.0. Galvanized square tube 80 * 100 * 2.5mm Q235 Galvanized square tube 80 * 40 * 1.5MM Q235 Galvanized square tube 40 * 60 * 1.5MM Q235 Galvanized folding piece 130 * 100 * 3.0MM Q235 |
|
| Top main beam | Corner piece 5.0. Galvanized square tube 80 * 80 * 2.5mm Q235 P-type pipe 80 * 40 * 1.5MM Q235 Galvanized square tube 20 * 40 * 1.5mm Q235 Galvanized square tube 60 * 40 * 1.5mm Q235 |
||
| Column | Galvanized folding piece 210 * 150 * 2.5mm Q235 | ||
| Sub-frame | p80*40*1.5MM Q235 Galvanized folding piece 40 * 90 * 2.0MM Q235 Galvanized square tube 60 * 40 * 1.5mm Q235 |
||
| hinge | Galvanized thickened hinge Q235 | ||
| floor | Middle floor | 18mm cement floor | |
| Both sides of the floor | 18m wooden plywood | ||
| Plastic flooring | 2.0mm plastic flooring | ||
| Insulated wall | external wall | 75mm sandwich panel, double-sided 0.25 color roll (sandwich material includes rock wool 80kg/m ³, EPS, polyurethane optional) The standard sandwich material is 10kg/m ³ EPS |
|
| partition | 50mm sandwich sandwich panel, color steel plate substrate double-sided 0.3. The insulation material is the same as above ↑ | ||
| Main roof and side roof | 75mm sandwich sandwich panel, color steel plate substrate double-sided 0.3. The insulation material is the same as above ↑ | ||
| Electrical system | parameter | ||
| Door and window system | Entrance doors | Standard steel double door (customizable KFC door, KFC sliding entrance door) | |
| Steel door | 50 socket steel door | ||
| window | Standard plastic steel double glass sliding windows (customizable high-end bridge cut aluminum windows and aluminum alloy sliding windows) 930 * 930 * 6 pieces; 500 * 500 * 1 piece | ||
| Toilet (optional) | Bathroom materials | Toilet door glass door, integrated shower (sliding door 8mm tempered glass), toilet, washbasin, showerhead | |

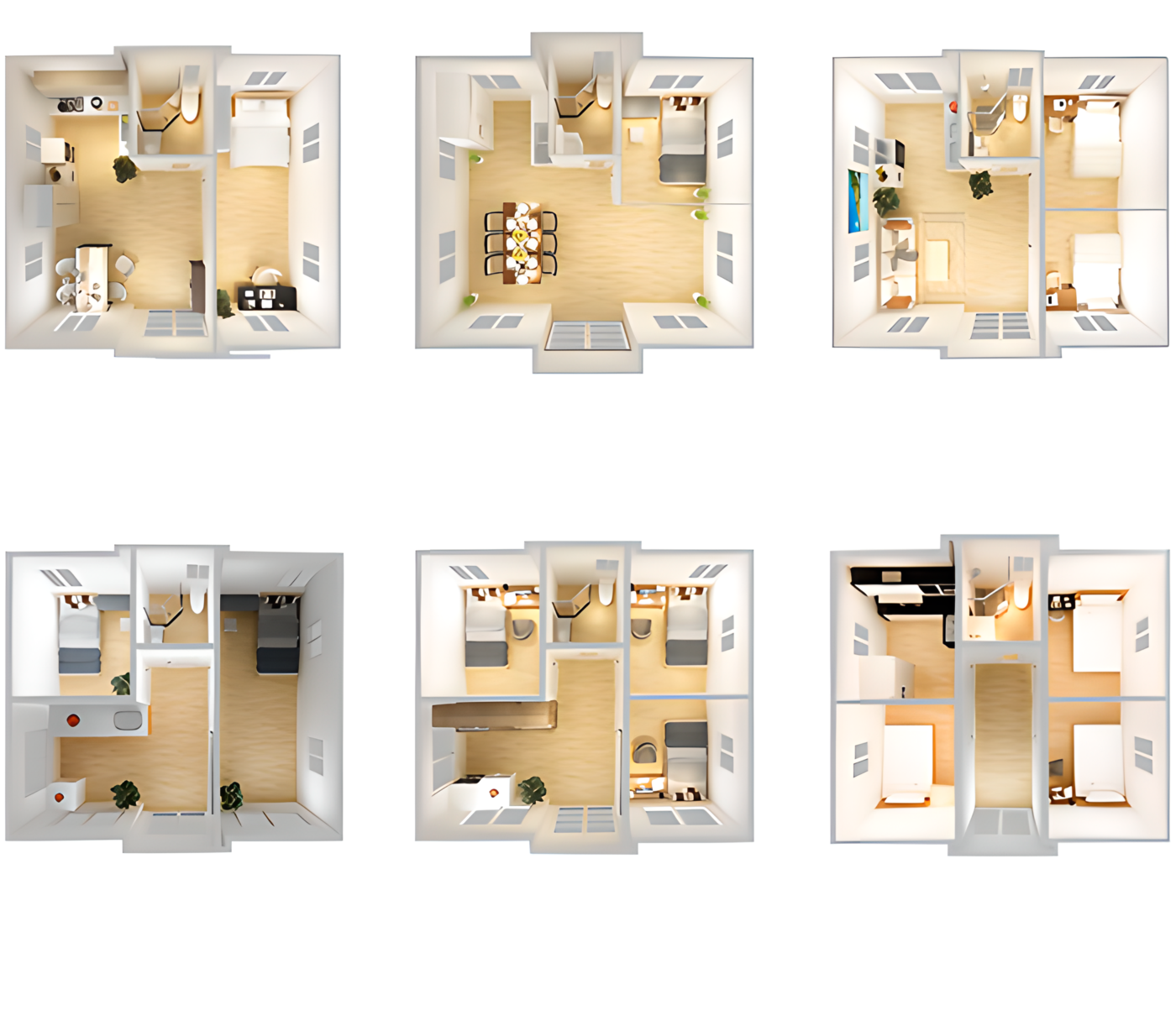

| House type | |||
| House type | One bedroom, one living room, one kitchen, one bathroom | Two bedrooms, one living room, one kitchen, and one bathroom | Three bedrooms, one living room, one kitchen, and one bathroom |
| price | |||
| The parameters in the layout drawings are for reference only, and the text in the parameter table shall prevail. | |||
